SNOW BLADE EXTENDMAXX

logo massey ferguson

Metal Pless EXTENDMAXX

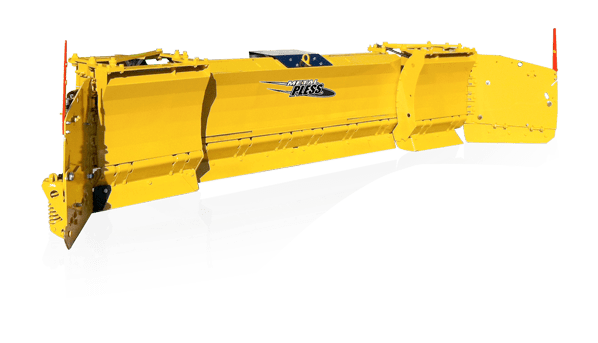

Extendable snow plow blade with hydraulic wings and angle. The ExtendMaxx is installed in front of a tractor with a Universal Subframe exclusive to Metal Pless.

Units

US Metric

FEATURES – Extendmaxx

  • Universal subframe exclusive to Metal Pless
  • Double action hydraulics “Pression Maxx” exclusive to Metal Pless
  • 180° multiple hydraulic side wing positions
  • Side wings made of “Heavy duty” steel CHT400
  • SOFT drive mechanical steel trip edge, “Heavy duty” multi-section ½” x 6″ (HD)
  • Mobile steel trip edge following the imperfection of roads, exclusive Metal Pless system, reduces up to 50% the use of salt and abrasives (LE)
  • Carbide cutting edge on main mouldboard only (LE)
  • SOFT drive mechanical steel trip edge on the wings
  • Wings have self-leveling abrasion shoes made of CHT400 steel
  • 3 adjustable crossover relief valves for hydraulic protection on the side wings and power angle system
  • Skid shoes made of CHT400 steel mounted to the back of the cutting edge (HD)
  • Lateral floating of the blade
  • Adjustable angulation of the blade
  • Baked powder paint
  • This system requires 5 sets of oil outlets

    AVAILABLE OPTIONS – Extendmaxx

    • Tire saver
    • Curb runners
    • 3 point hitch attachment
    • Carbide cutting edge
    • Non standard colour
    • Nitrogen accumulator package installed on the up and down cylinder
    • Electric valve and Joystick

      BASIC VARIATIONS on blade positions

      Basic variations on blade positions
