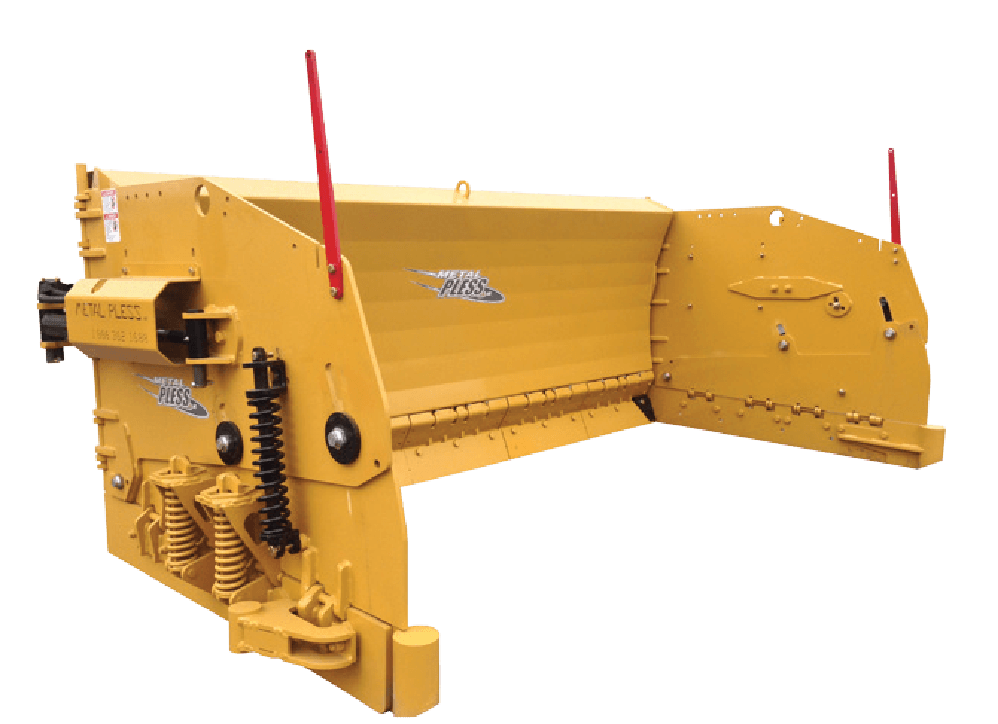

Snow plow with hydraulic wings and angle. The Citymaxx is installed in front of a tractor with a Universal Subframe exclusive to Metal Pless or on a front 3 point hitch.
Double action hydraulics “Pression Maxx” exclusive to Metal Pless
180° multiple hydraulic side wing positions
Side wings made of “Heavy duty” steel CHT400
SOFT drive mechanical steel trip edge heavy duty multi-section ¾’’ x 6’’ x 24″ (HD)
Mobile steel trip edge following the imperfection of roads, exclusive Metal Pless system, reduces up to 50% the use of salt and abrasives (LE)
Carbide cutting edge on main mouldboard only (LE)
SOFT drive mechanical steel trip edge on the wings
3 adjustable crossover relief valve for hydraulic protection on the side wings and power angle system
Skid shoes (CHT400 steel) mounted to the back of the cutting edge (HD)
Wings have self-leveling abrasion shoes made of CHT400 steel
Curb runners on abrasion shoes
Lateral floating of the blade
Adjustable angulation of the blade
Baked powder paint
This system requires 3 or 4 sets of oil outlets
AVAILABLE OPTIONS
HighSpeed (Accentuated curve of the mouldboard, see picture)
* 3 point hitch attachment
Carbide cutting edge
Non standard colour
Nitrogen accumulator package installed on the up and down cylinder
Electric valve and Joystick (Electric over hydraulic 4 spools mounted on blade with electric control and necessary cable for the installation in the tractor cab)
