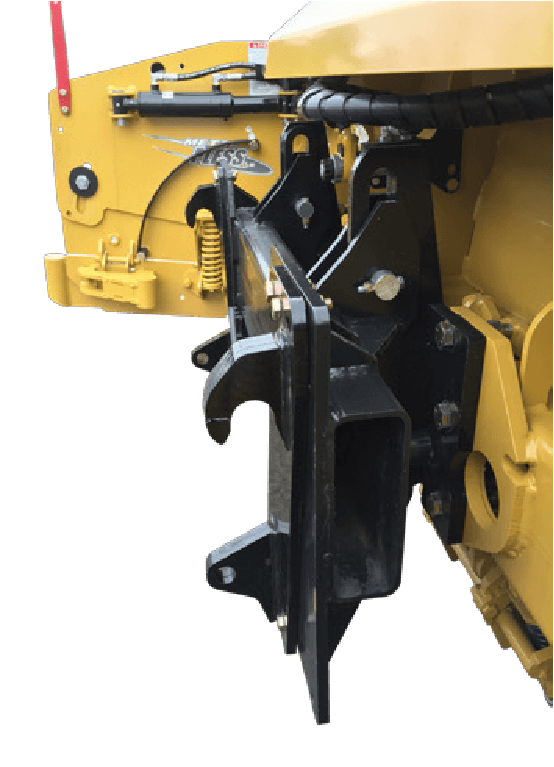

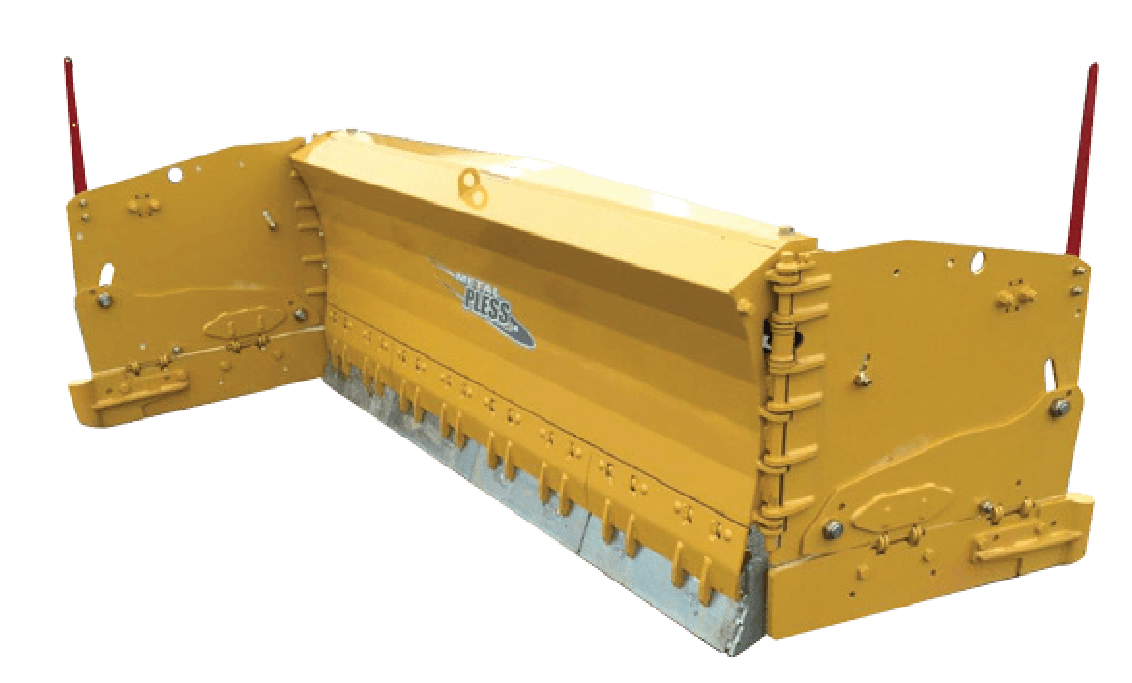

Snow plow with hydraulic wings. The ReverseMaxx is installed on an agricultural loader “arms”, skid steeror backhoe.



US Metric

FEATURES – Reversemaxx

  • Blade without pivot (no angle) with two hydraulic side wings
  • 180° multiple hydraulic side wing positions
  • Side wings made of “Heavy duty” steel CHT400
  • “Heavy duty” CHT400 steel multi-section mechanical trip edge ½’’ x 6’’ (Std)
  • SOFT drive mechanical steel trip edge, “Heavy duty” multi-section ½” x 6″ (HD)
  • Mobile steel trip edge following the imperfection of roads, exclusive Metal Pless system, reduces up to 50% the use of salt and abrasives (LE)
  • Carbide cutting edge on main mouldboard only (LE)
  • 2 adjustable crossover relief valves for hydraulic protection on the side wings
  • Wings have self-leveling abrasion shoes made of CHT400 steel
  • SOFT drive mechanical steel trip edge on the wings (HD/LE)
  • Wear plate welded to the skid shoes on the side wings (Std)
  • Lateral floating of the blade
  • Electric double valve selector installed on the blade (DVDE2) 12 or 24 volts
  • Baked powder paint
  • This system requires 1 set of oil outlets

    AVAILABLE OPTIONS – Reversemaxx

    • Silage application (includes deflector and hydraulic tilt)
    • Teflon cutting edge ¾’’ x 6’’
    • Carbide cutting edge
    • Curb runners
    • Non standard colour
    • Quick attach
