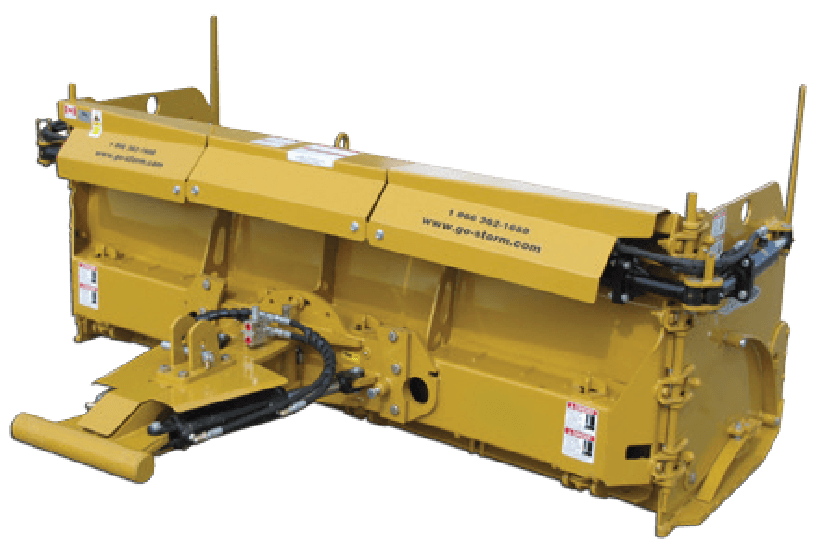

SNOW BLADE AGRIMAXX

FEATURES – Agrimaxx

• Universal subframe exclusive to Metal Pless
• Double action hydraulics ‘‘Pression Maxx‘‘ exclusive to Metal Pless
• 180° multiple hydraulic side wing positions
• Side wings made of “Heavy duty” steel CHT400
• HD CHT400 steel multi-section mechanical trip edge ½’’ x 6’’ (Std)
• SOFT drive mechanical steel trip edge, “Heavy duty” multi-section ½” x 6″ (HD)
• Mobile steel trip edge following the imperfection of roads, exclusive Metal Pless system, reduces up to 50% the use of salt and abrasives (LE)
• Carbide cutting edge on main mouldboard only (LE)
• 3 adjustable crossover relief valves for hydraulic protection on the side wings and power angle system
• Wings have self-leveling abrasion shoes made of CHT400 steel
• Wear plate welded to the skid shoes on the side wings (Std)
• SOFT drive mechanical steel trip edge on the wings (HD/LE)
• Lateral floating of the blade
• Adjustable angulation of the blade
• Baked powder paint
• *This system requires 4 sets of oil outlets

AVAILABLE OPTIONS – Agrimaxx

• Tire saver
• ¾’’ x 6’’ teflon cutting edge
• Carbide cutting edge
• Non standard colour
• Nitrogen accumulator package installed on the up and down cylinder
• Electric valve and Joystick (electric over hydraulic 4 spools mounted on blade with electric control and necessary cable for the installation in the tractor cab)
• 4 sets of oil outlets
• 3 point hitch attachment
• Curb runners

BASIC VARIATIONS on blade positions

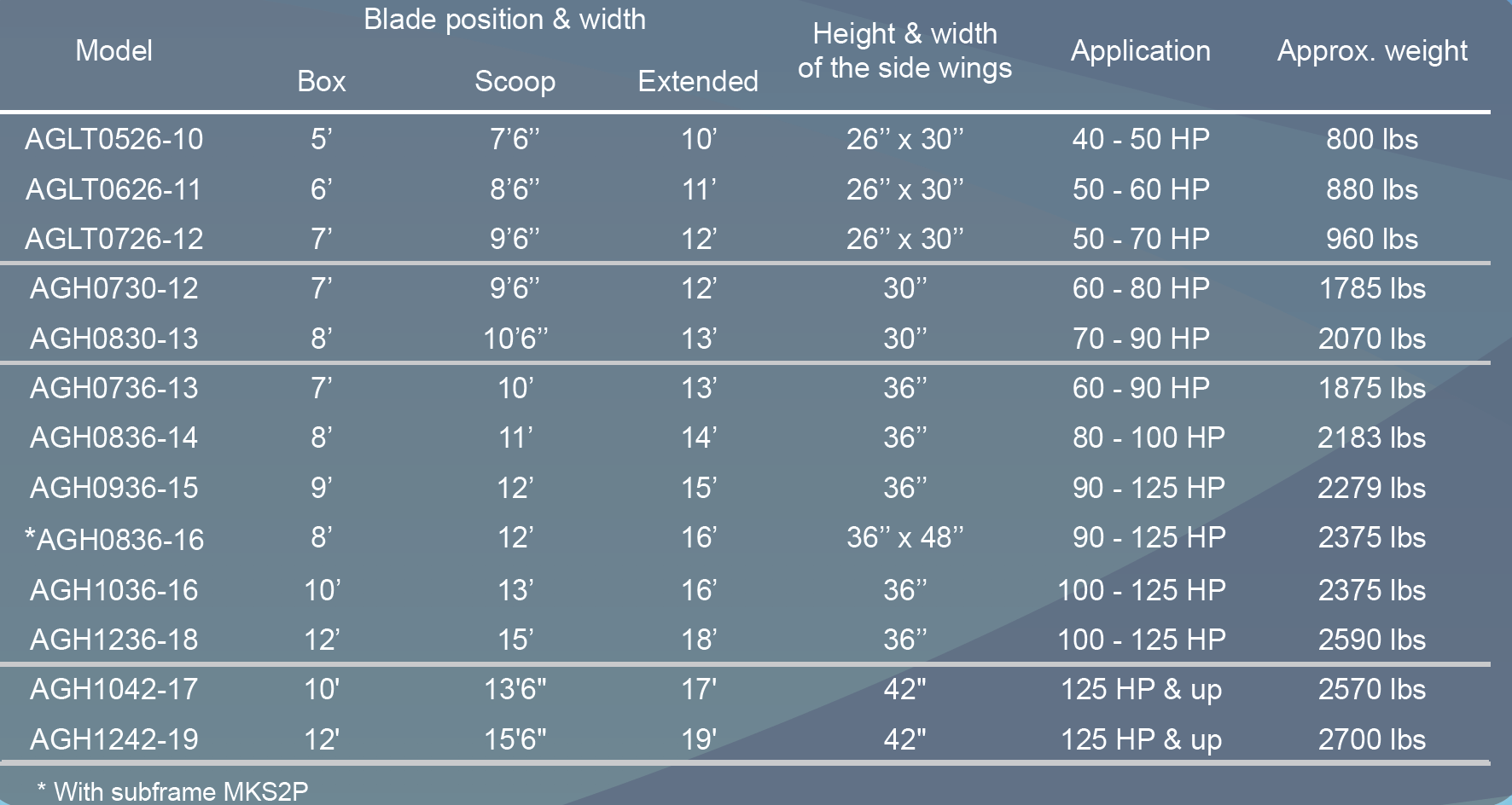

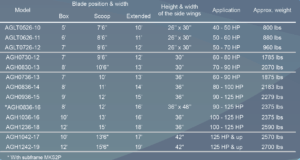

MODEL – Agrimaxx
