SNOW BLADE REVERSEMAXX

logo massey ferguson

Metal Pless REVERSEMAXX

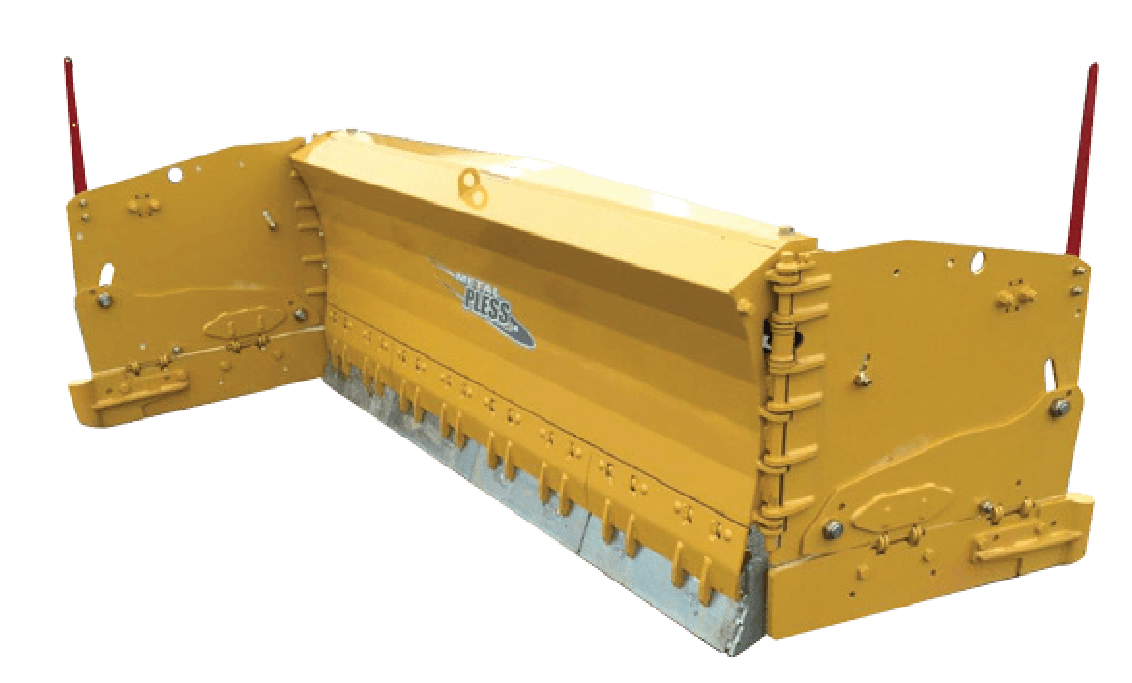

Snow plow with hydraulic wings. The ReverseMaxx is installed on an agricultural loader “arms”, skid steeror backhoe.

SIDEMAXX
SIDEMAXX

Units

US Metric

FEATURES – Reversemaxx

  • Blade without pivot (no angle) with two hydraulic side wings
  • 180° multiple hydraulic side wing positions
  • Side wings made of “Heavy duty” steel CHT400
  • “Heavy duty” CHT400 steel multi-section mechanical trip edge ½’’ x 6’’ (Std)
  • SOFT drive mechanical steel trip edge, “Heavy duty” multi-section ½” x 6″ (HD)
  • Mobile steel trip edge following the imperfection of roads, exclusive Metal Pless system, reduces up to 50% the use of salt and abrasives (LE)
  • Carbide cutting edge on main mouldboard only (LE)
  • 2 adjustable crossover relief valves for hydraulic protection on the side wings
  • Wings have self-leveling abrasion shoes made of CHT400 steel
  • SOFT drive mechanical steel trip edge on the wings (HD/LE)
  • Wear plate welded to the skid shoes on the side wings (Std)
  • Lateral floating of the blade
  • Electric double valve selector installed on the blade (DVDE2) 12 or 24 volts
  • Baked powder paint
  • This system requires 1 set of oil outlets

    AVAILABLE OPTIONS – Reversemaxx

    • Silage application (includes deflector and hydraulic tilt)
    • Teflon cutting edge ¾’’ x 6’’
    • Carbide cutting edge
    • Curb runners
    • Non standard colour
    • Quick attach
